System-Configuration |

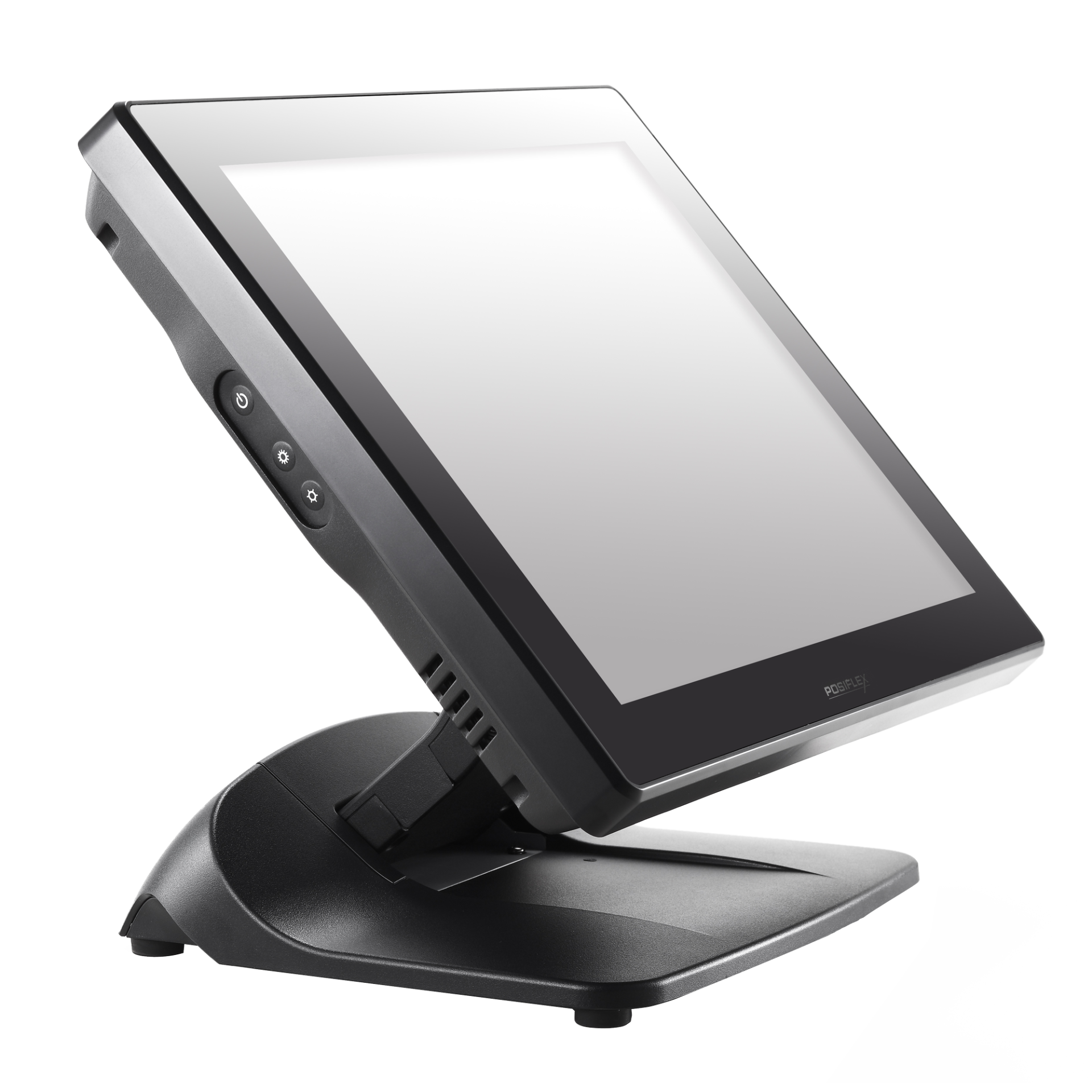

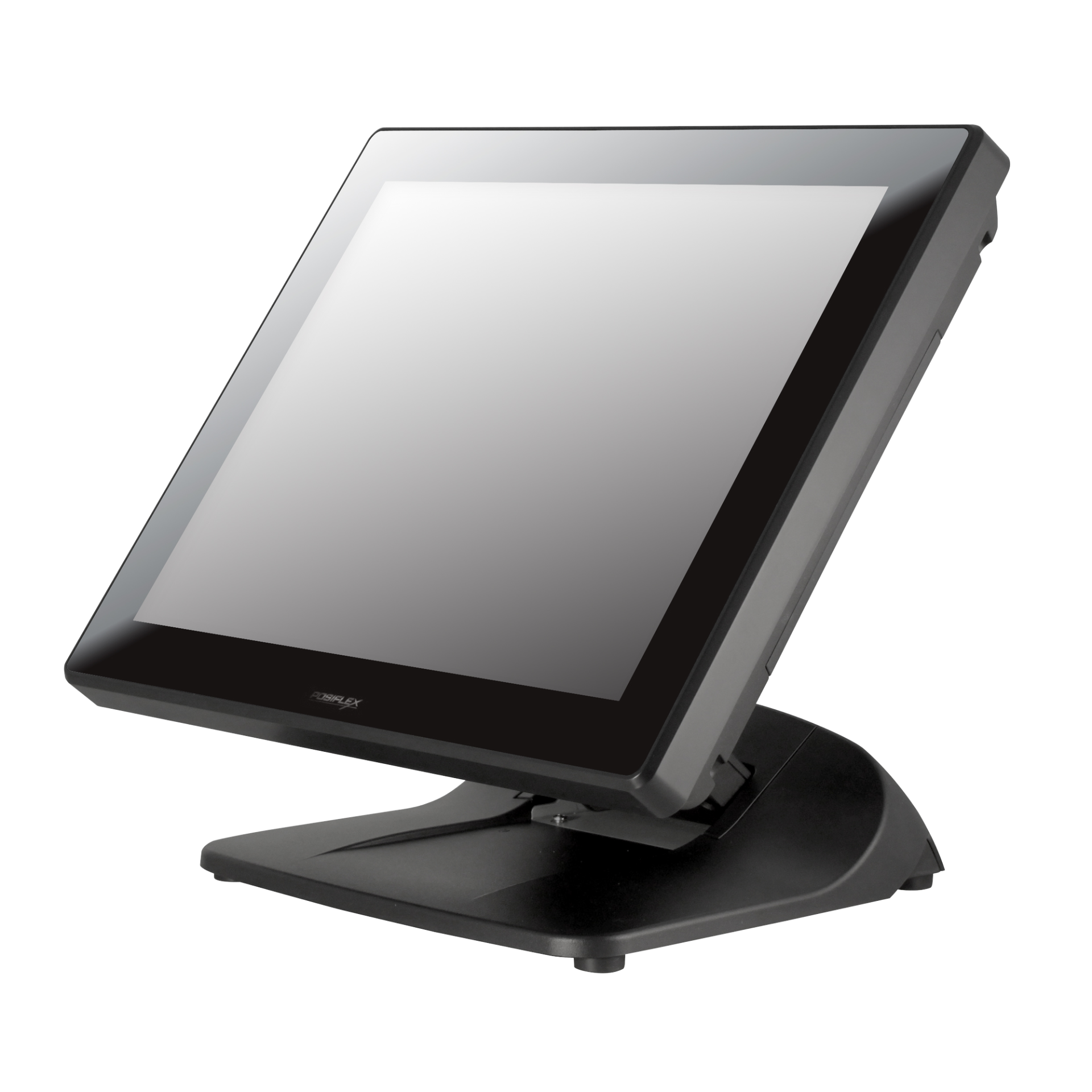

XT-8315 |
|
|
Processor |
Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache; |
|
|
System Memory |
DDR4 SO-DIMM slot x 2, max. 64GB |
|
|
Storage Device |
M.2 connector x 2 (support both SATA and PCIe signal) |
|
|
RAID Function |
Yes , (RAID 0/1) |
|
|
Intel vPro Support |
Yes, depends on processor |
|
|
TPM |
TPM 2.0 |
|
|
Power Supply |
12V/60W |
|
|
OS Support |
Windows 10 IoT LTSC |
|
|
Display & Touch |
|
|
|
LCD |
15” TFT LCD |
|
|
Resolution |
1024 x 768 |
|
|
Touch |
True-flat PCAP touch with multi-touch support (IP65 on front panel) |
|
|
I/O Expansion |
|
|
|
Serial Port |
RJ50 x 3 + COM4/COM5 via optional converter cable from service window, 5V support on all COM ports, 12V support on COM1 to COM3 |
|
|
Parallel Port |
via optional conversion cable through service window |
|
|
Standard USB Port |
USB 3.0 x 4 + USB 2.0 x 2 |
|
|
PoweredUSB Port |
Optional 24V x 1 + 12V x 3 via GEN8E base |
|
|
OTG USB |
N/A |
|
|
LAN Port |
10/100/1000 Mb x 2 |
|
|
Display Port |
VGA x 1 (12V support for Posiflex monitors) + HDMI x 1 |
|
|
CR Port |
RJ11 x 1, control 2 CR via optional Y-cable, support 24V cash drawer |
|
|
PS2 Port |
via optional conversion cable through service window |
|
|
UPS Port |
Yes, for optional UPS battery |
|
|
Audio |
Internal 2W speaker x 1 + Line-out/mic-in combo jack x 1 |
|
|
Expansion Slot |
M.2 slot x 1 |
|
|
Dimension |
|
|
|
Dimension (W x D x H in mm) |
372 x 252.7 x 320 |
|
|
Weight (N. W. in kg) |
6 |
|
|
Environmental |
|
|
|
Operating Condition |
0°C - 40°C, 20%RH - 90%RH |
|
|
Storage Condition |
-20°C - 70°C, 10%RH - 90%RH |
|
|
Built-In Options |
|
|
|
WiFi module |
M.2 WiFi/BT module |
|
|
Camera Module |
N/A |
|
|
Printer Module |
N/A |
|
|
AG Glass |
N/A |
|
|
Attachment Options |
|
|
|
POS Monitor |
PCAP touch TFT LCD: 9.7"/14"/15" |
|
|
Line Display |
2 x 20 rear-mount VFD/LCD customer line display; |
|
|
External UPS Pack for RT Series |
N/A |
|
|
Attachment |
MSR; iButton; Rotatable 2D Scanner; RFID; Fingerprint Sensor; Keypad, 24V + 12V PoweredUSB module via GEN 8E base (USB 2.0 x 1 will be occupied with this module) |
|
|
