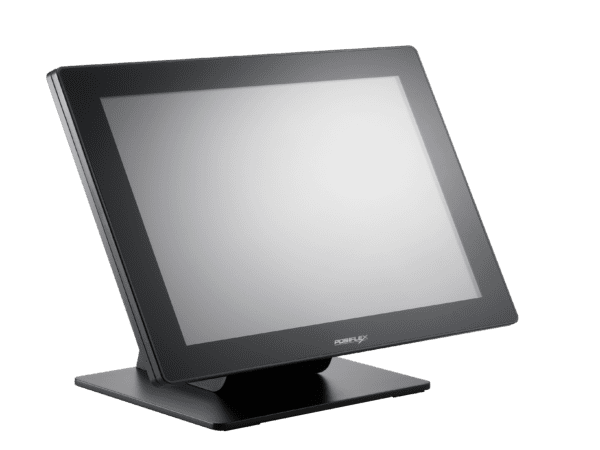

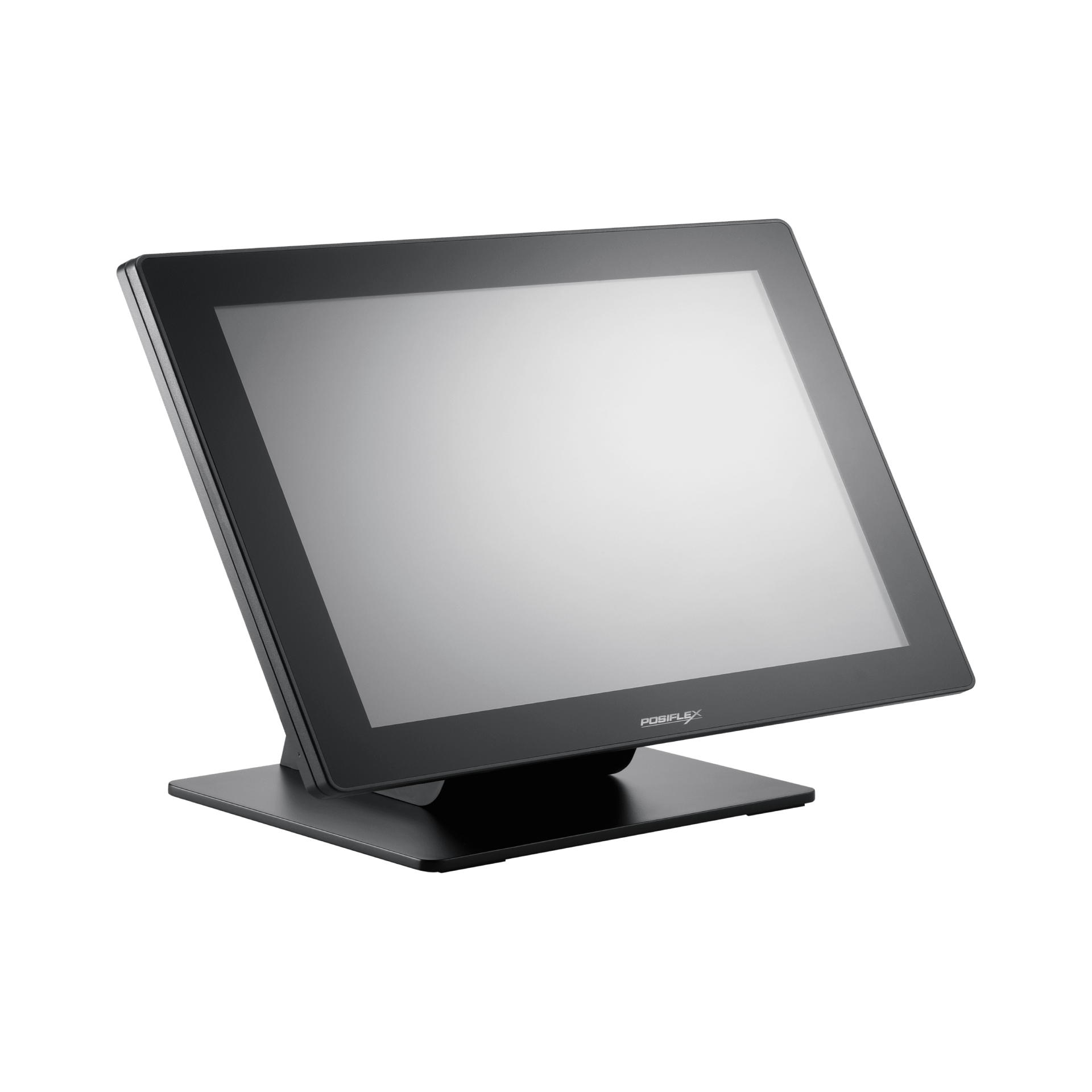

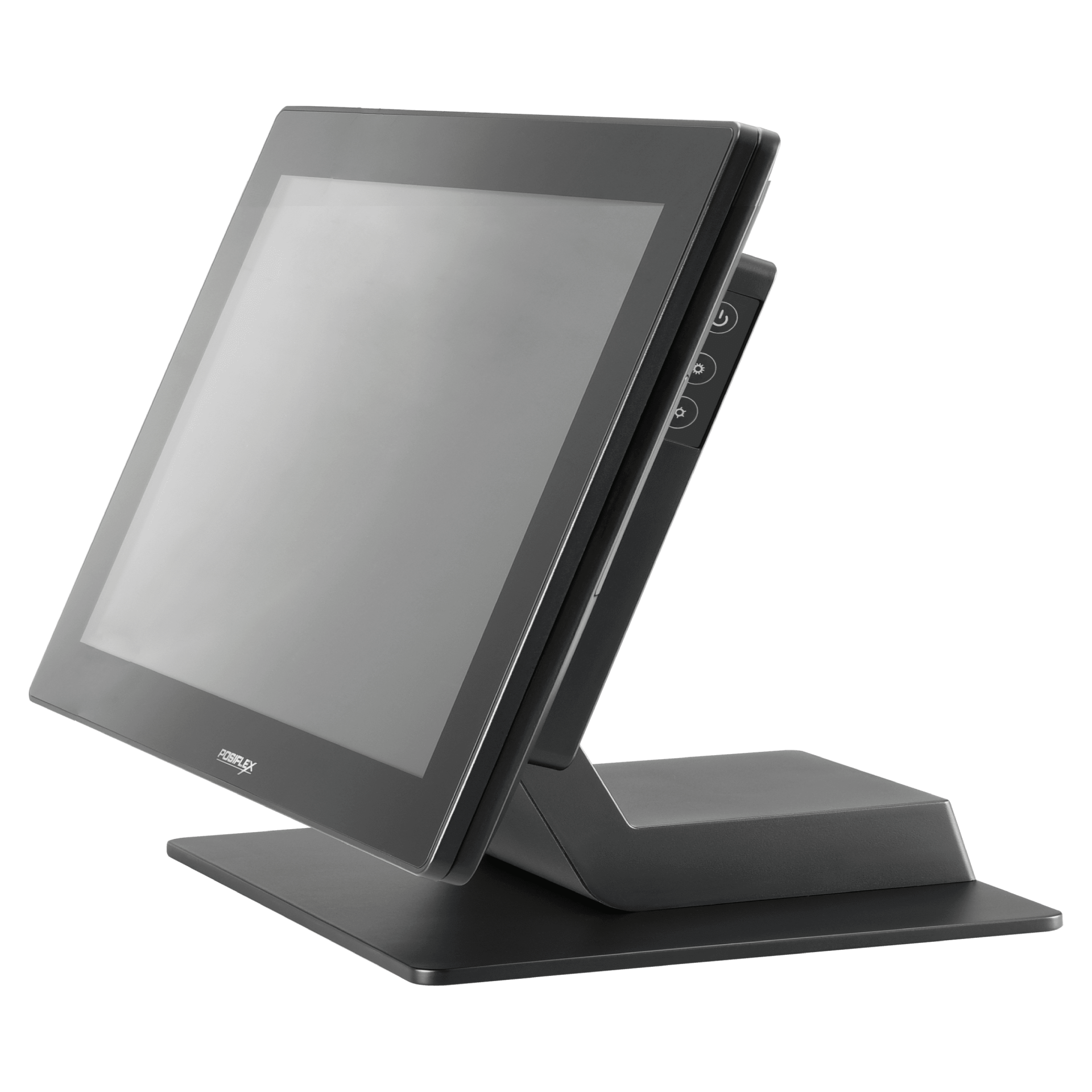

RT 6016 G2


Elevate your POS experience with the RT-6016-G2, boasting a sleek and ultra-slim design that exudes elegance while delivering uncompromising performance.



Compare
Category:
RT Series

Slim & Stylish Design:

Featuring a 15.6" PCAP touch screen and a clean rear cover with hidden ports, the RT-6016-G2 sets a new standard with its sophisticated appearance and seamless integration.

Patented Fanless Technology:

Enjoy quiet operation and extended service life, thanks to its innovative fan-less design, suitable for various environments.

Clean Cable Management:

Say goodbye to clutter with advanced cable management, offering integrated Powered USB or UPS backup (RB-5000) options for enhanced functionality.

Easy Installation and Serviceability:

Effortlessly remove the rear cover without tools for faster installation and serviceability, ensuring minimal downtime.

Enhanced Efficiency:

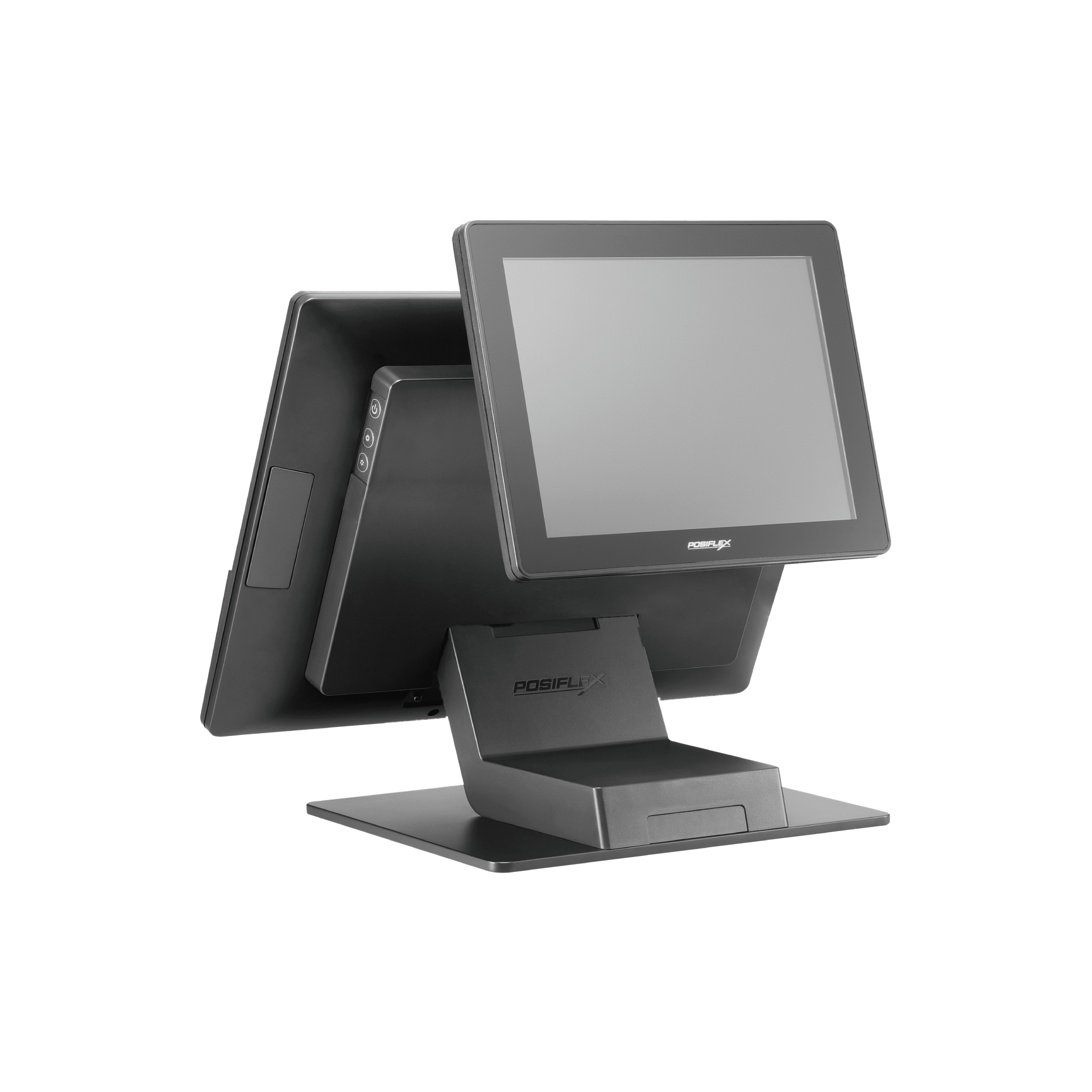

Choose from a customer line display or a 10.1” 2nd customer-facing LCD for streamlined deployment and reduced shipping costs, saving both time and money.

Experience the next level of POS terminal design with the RT-6016-G2 – where style meets functionality, and performance meets elegance.

Additional information

System Configuration
Processor

Intel Tiger Lake UP3 Core i3, Intel Tiger Lake UP3 Core i5

Storage Device

2 x M.2 2280 ( support both SATA III signal and PCIe signal) (128GB Default)

System Memory

DDR4 SO-DIMM x 2, max 64GB (8GB DDR4 Default)

OS Support

Windows 10 IoT 64 bits

Power Supply

12V/60W

Intel vPro Support

Yes, with Core i3 & i5

TPM Support

Yes, TPM 2.0
Display & Touch
LCD Display

15.6" TFT LCD

Resolution

1920 x 1080

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel)
I/O & Expansion
Audio

Internal 2W speaker x 1

CR Port

1, control 2 CR via optional Y-cable, supporting 24V cash drawer

Display Port

1 x VGA (proprietary connector) + 1 x mini-DP

Extension Slot

M.2 2230 x 1 for Wi-Fi/BT

LAN Port

10/100/1000 Mb x 1

Parallel Port

N/A

Powered USB Port

Optional Powered USB module with 24V + 12V (USB 2.0 x 1 will no longer be available with the Powered USB module)

PS/2 Port

N/A

OTG USB

N/A

Serial Port

3, DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports

Standard USB Port

5, USB 3.0 x 2 + USB 2.0 x 3

UPS Port

N/A
Built-in Option
AG Glass

Cannot co-exist with built-in camera

Camera

1MP wide angle camera

RFID Reader

Yes

WiFi

M.2 WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

402 x 207 x 297

Weight (N.W. in Kg)

5
Environment
Operating Condition

0°C – 40°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Attachment Options
Line Display

2 x 20 rear-mount VFD customer line display

POS Monitor

Non-touch TFT LCD: 9.7"/10.1"/15"; PCAP touch TFT LCD: 9.7"/10.1"
More
MSR

N/A

External UPS Pack For RT Series

UPS battery module (12V/2300mAh)

Attachment

MSR; iButton; 2D Scanner; RFID; Fingerprint Sensor

Brand

RT Series

E-Brochures
Brochure for RT 6015 G2 Download
