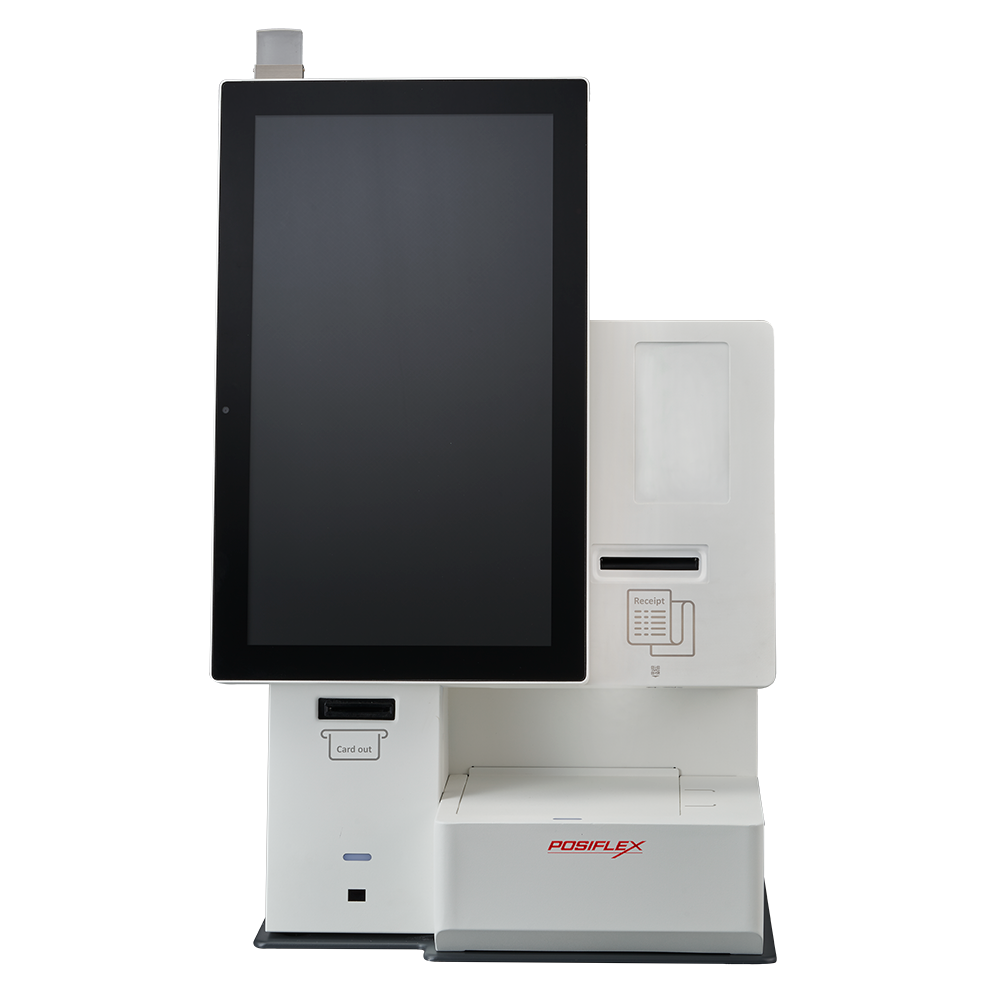

HK-2100
HK-2100 - Image 2

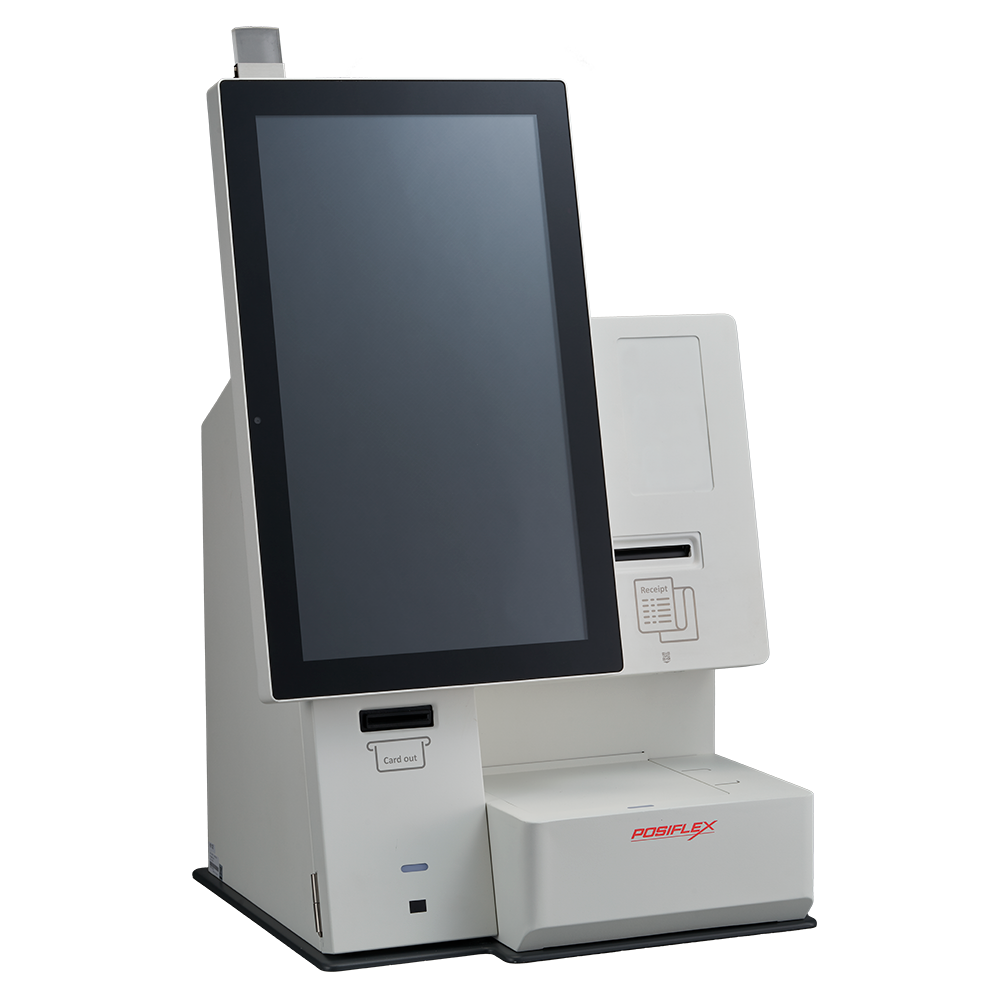

HK-2100 - Image 3

HK-2100


  • Intuitive and User-friendly Self Check-in/Check out
  • Highly Integrated Self-Service Kiosk
  • Highly Secured
  • Enhance Service Quality
  • Solution for Labor Shortage
Compare
Category:
HK Series

Overview

HK-2100 Series Overview



Intuitive and User-friendly Self Check-in/Check out

HK-2100 Series has an intuitive and user-friendly design, offering a personalized experience, providing customer choices and liberate your staff from mundane tasks.

Highly Integrated Self-Service Kiosk

Highly integrated card recycler, printer, passport/ID scanner and payment devicess.

Highly Secured

Identification authentication and verification through AI and Passport/ID scanner for added security.





Enhance Service Quality

Hotel Self-service Check-in/Check-out Kiosk can help reduce queueing, frictions and elevating the guest experience with their stay.

Solution for Labor Shortage

Hotel Self-service Check-in/Check-out Kiosk liberate labor shortage providing always on, personalized service option to the customers.



Specifications



System-Configuration HK-2110
Processor Rockchip RK3399
System Memory DDR4 4GB
Storage Device default 32GB eMMC + microSD slot x 1
Intel vPro Support N/A
TPM Support N/A
Power Supply 24V/120W
OS Support Android 9.0*/Android 10.0 with GMS
I/O-Expansion
Serial Port RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port USB 3.0 x 1 + USB 2.0 x 5
OTG USB Micro-USB x 1
Display Port HDMI x 1
LAN Port 10/100 Mb x1, 10/100/1000 Mb x1
Audio Internal 3W speaker x 1
Expansion Slot N/A
Display & Touch
LCD 21.5” TFT LCD with LED backlight
Resolution 1920 x 1080
Touch PCAP supporting multi-touch
Dimension
Dimension(W x D x H in mm) 497.6 x 441.3 x 814.9
Weight(N. W. in kg) 28.5 kg
Environmental
Operating Condition 0°C - 40°C, 20%RH - 90%RH
Storage Condition -20°C - 70°C, 10%RH - 90%RH
Standard Components
Status Indicator RGB Color LED Indicator
Proximity Sensor 1. Range from 45cm ~ 80cm 2. Range from 45cm ~ 150cm
Camera Module 1MP wide angle camera
Printer Module 3" thermal printer w/auto cutter, 250 mm/sec (max.)
Card Dispenser/Recycler Supporting ISO/IEC 14443 Type A/B contactless cards; Storing up to 150pcs cards, 0.9-1.4mm thickness card is standard
Scanner Module 2D barcode scanner
Optional-Components
EMV Payment Device Bracket Support Custom bracket support for various EMV payment devices.
4G / LTE Communication Support selected bands & countries with full SIM slot by request
WiFi Wi-Fi 5 & BT4.2 (USB dongle; cannot coexist with 4G/LTE)
Passport Reader Bracket DESKO PENTA Cube / 4X Cube

Brand

HK Series

E-Brochures
Brochure for HK-2100 Download
