HC-5321E


  • 21.5″ FHD LCD display with PCAP multi-touch support
  • Powered by Intel® Core™ i3/i5/i7 processor (13th Gen, Raptor Lake)
  • Supports DDR5 Memory up to 64GB, Dual M.2 SSD Support
  • Support PoweredUSB Expansion Interfaces
  • Dual 2.5Gbe High-speed Network
  • Support Gen10 Base
  • Supports VESA 100 mounting
  • Supports Side Attachments (RA Series)
Compare
Category:

Overview

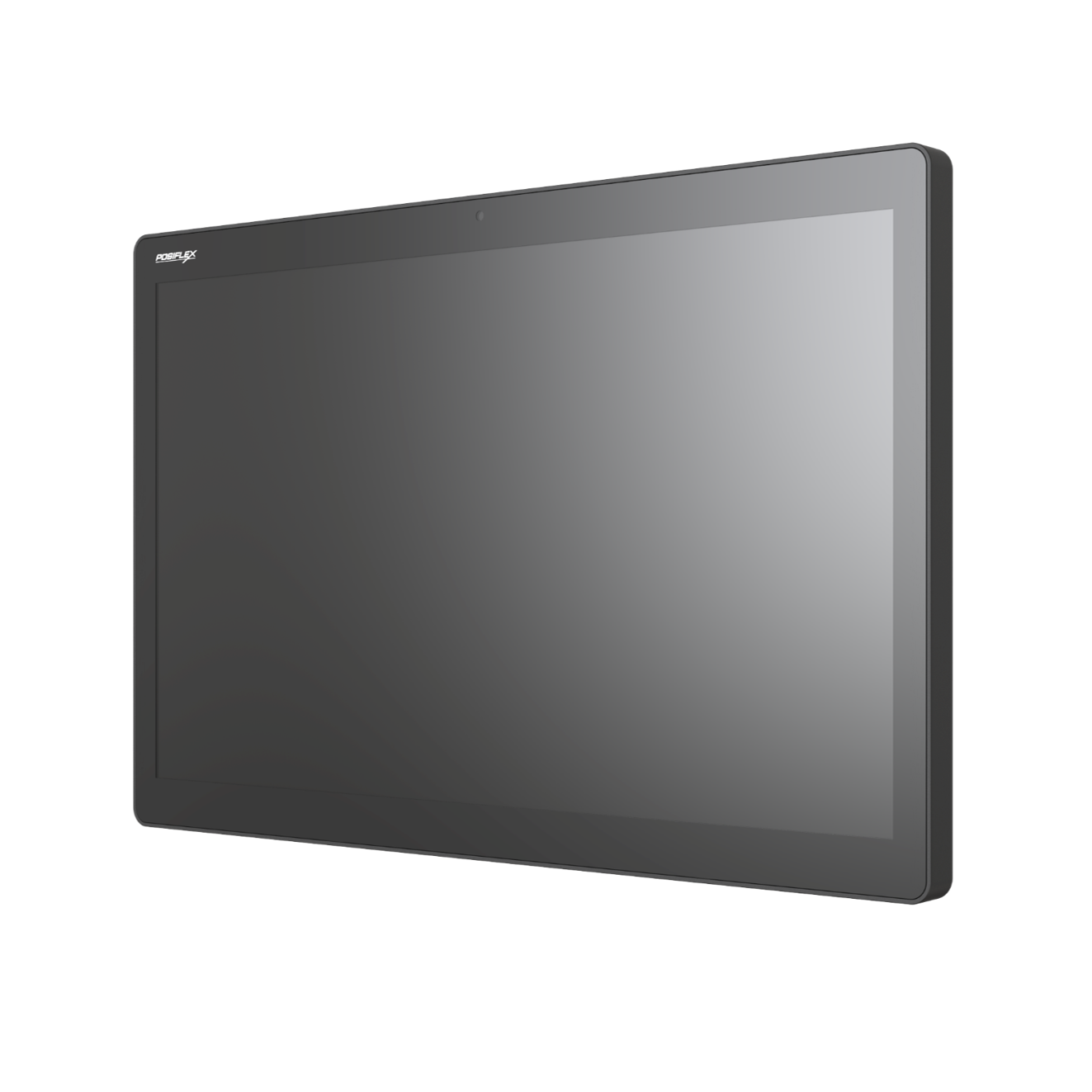

HC-5321E Overview



Bigger View, Smoother Workflow



HC-5321E boasts a 21.5-inch Full HD (1920 x 1080) touchscreen delivering exceptional clarity. With multiple display options, including two Type-C and one HDMI ports, enabling multitasking and immersive visuals in a variety of commercial applications.



 Ready for Action with Intel 13th Generation Core Processor



Powered by Intel® 13th Gen Raptor Lake processors, HC-5321E ensures smooth simultaneous operations and fast operation processing, making it ideal for high-demand environments.







Built to Stand Firm with a Slim, Stylish Profile



Featuring a sleek design and a sturdy base, the new Gen10 base offers stability and easy screen adjustments with its dual-hinge structure, ensuring an optimal viewing angle.



 I/O Options for Every Operation





The HC-5321E features dual PoweredUSB 12V and one 24V port for efficient power delivery, multiple USB ports for diverse peripherals, dual 2.5GbE LAN ports for fast networking, and an M.2 2230 slot for future WiFi/BT upgrades, ensuring seamless connectivity expansion. This combination offers unmatched flexibility and scalability for growing businesses.

 Fan-free Design



Fan-free design allows silent operation, with better reliability with no moving parts. It allows the terminal to run quietly in all kinds of harsh conditions and – at the same time - provides a better longevity.

Versatile Peripheral Support



HC-5321E supports a wide range of peripherals, including MSR, iButton, rotatable 1D/2D scanner, RFID/NFC, finger print reader and more, allowing for flexible customization to suit various business needs and enhance operational efficiency.

Specifications

System-Configuration HC-5321E
Processor Intel Raptor Lake U Core i3
Intel Raptor Lake U Core i5
Intel Raptor Lake U Core i7
System Memory DDR5 SO-DIMM x 2, max. 64GB
Storage Device M.2 2280 x 2 (support both SATA and PCIe signal)
RAID Function Yes (Raid 0/ 1)
Intel vPro Support Yes, depends on processor
TPM TPM 2.0
Power Supply 24V/120W
OS Support Windows 10 IoT LTSC / Windows 11 IoT LTSC
Display & Touch
LCD 21.5" LCD (Default: 350 nits, option:500 nits)
Resolution 1920 x 1080, FHD
Touch PCAP supporting multi-touch
I/O Expansion
Serial Port DB9 x 1 + RJ50 x 2, 5V/12V support on all COM ports
Standard USB Port USB 3.0 x 4
PoweredUSB Port PoweredUSB 12V x 2 + PoweredUSB 24V x 1
LAN Port 2.5Gbe x 2
Display Port Type-C x 2, HDMI 2.0 x 1
CR Port Control 2 x Cash Drawer, 24V support only
Audio Internal 2W speaker x 2 , Headset jack (Line out/Mic In) x 1
Expansion Slot M.2 2230 x 1 (reserved for WiFi/BT Module)
Dimension
System Support With Gen10 base stand
Dimension (W x D x H in mm) 514.9 x 322.9 x 39 (without Gen10 base stand)
VESA Mounting Support Yes (VESA 100)
Weight (N. W. in kg) 4.96 (without Gen10 base stand)
Environmental
Operating Condition 0C - 40C, 20%RH - 90%RH
Storage Condition -20C - 70C, 10%RH - 90%RH
Button / Key
Buttons Power Button x 1, Brightness +/- button x 2
Factory Option
Side Attachment RA series
Wireless Communication 4G / LTE module
WLAN/BT Wi-Fi IEEE 802.11a/b/g/n/ac (WiFi6) / BT 5.2
Camera 5MP (AF)

Brand

HC Series

E-Brochures
Brochure for HC-5321E Download
