HC 2021A

HC Series

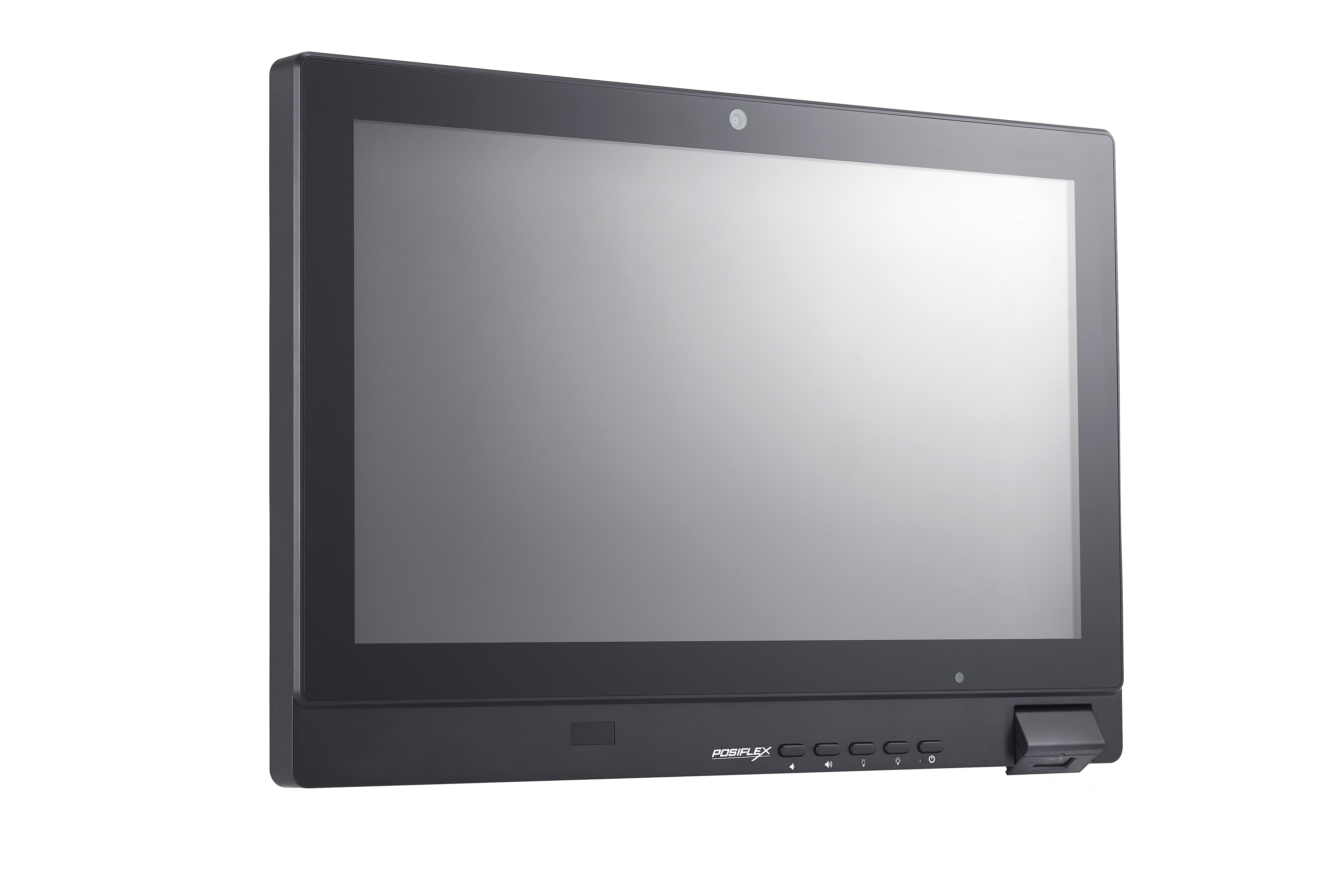

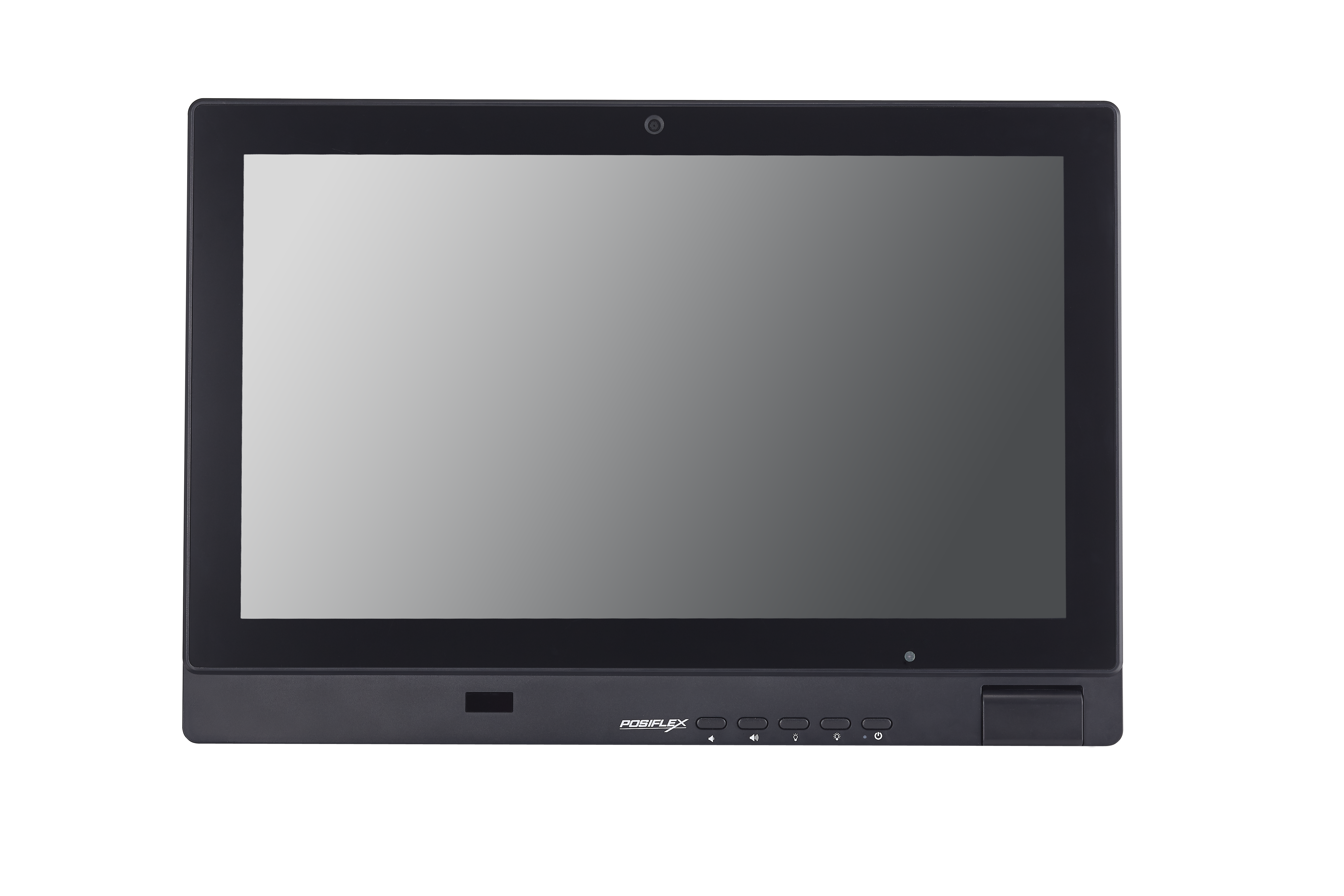

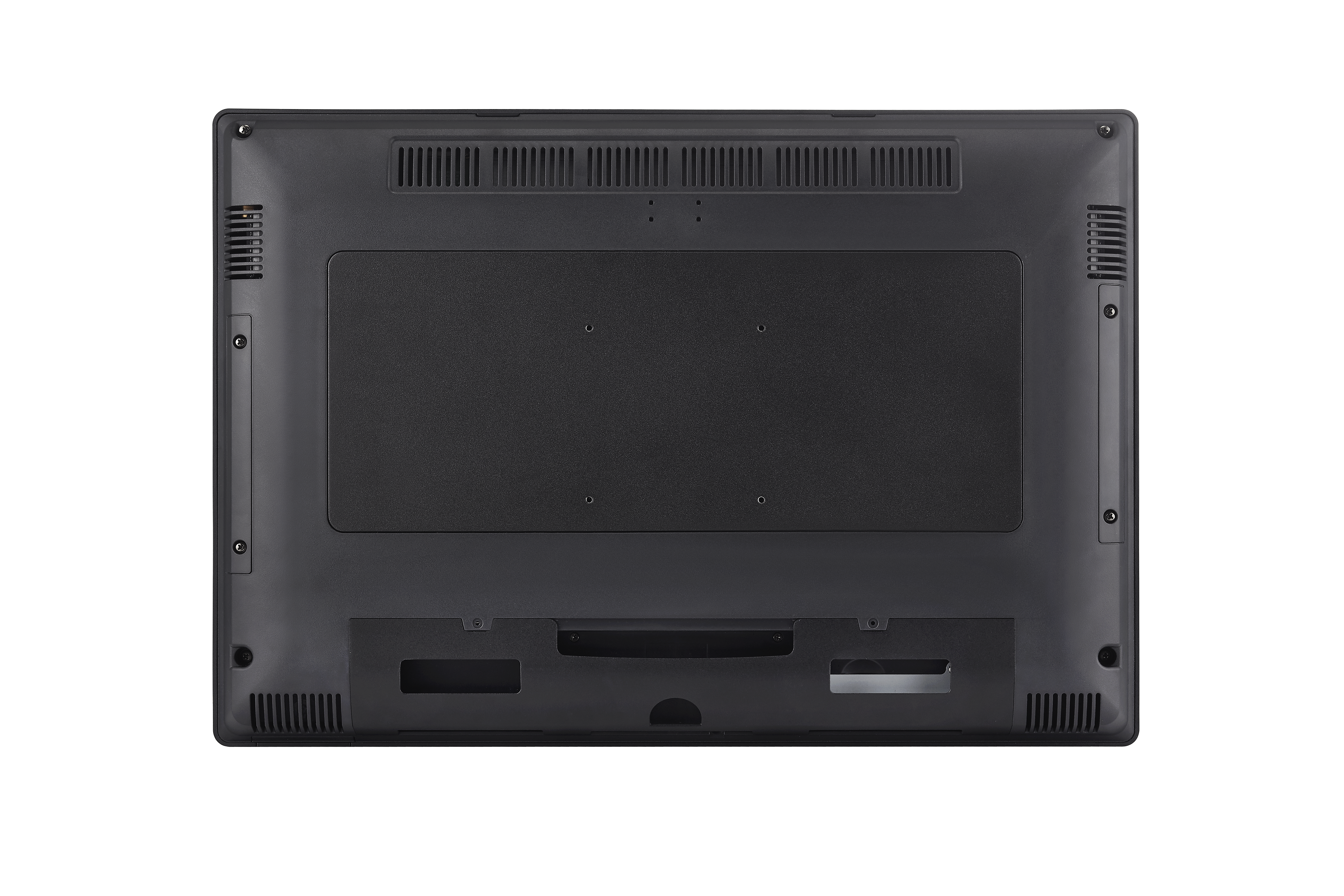

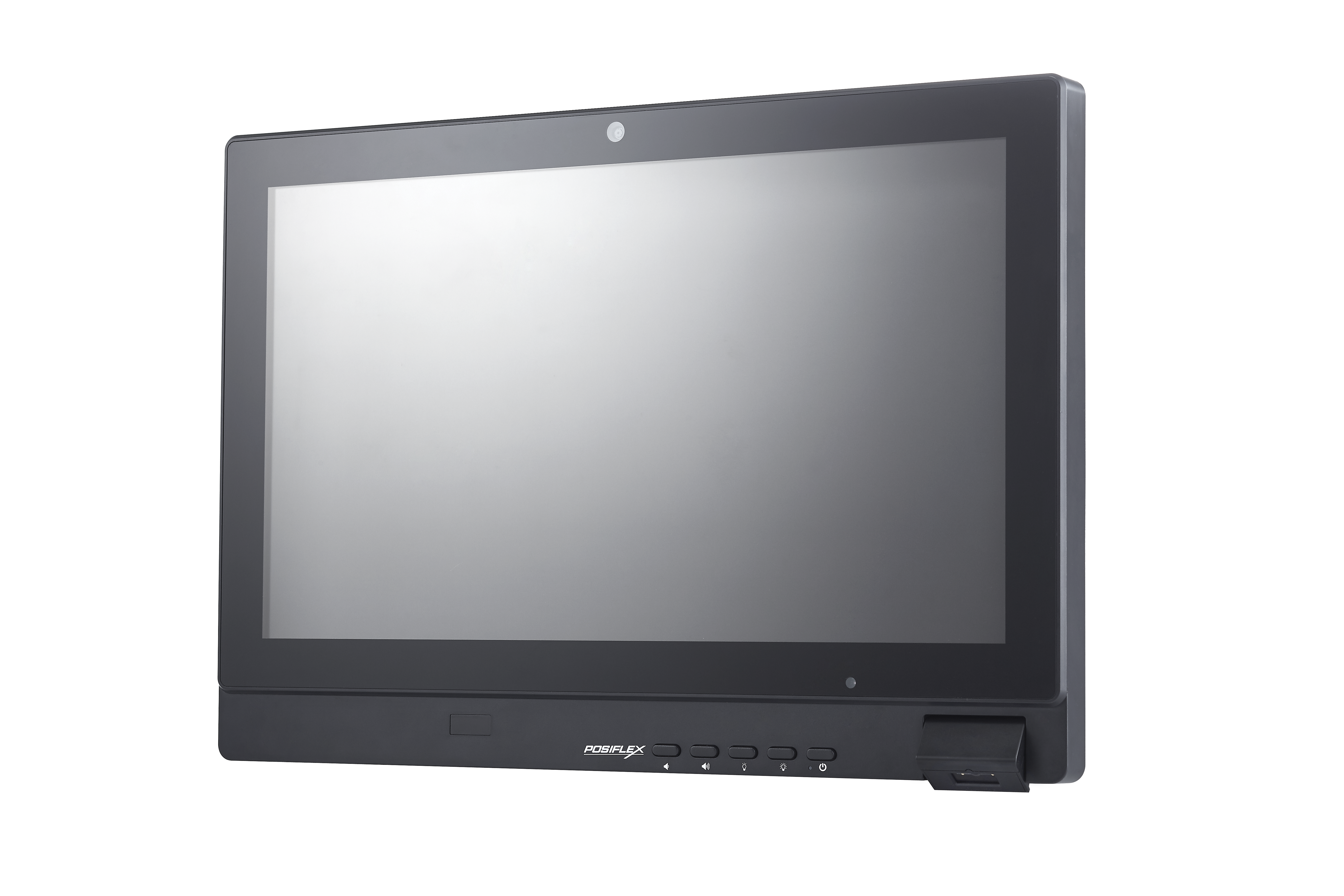

The HC-2021A is a high-end infotainment terminal with a 21.5 IR touch screen display. It offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions.

Compare
Category:
HC Series

Additional information

System Configuration
Processor

Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz

Storage Device

32 GB eMMC + microSD slot x 1

System Memory

DDR4 4 GB

OS Support

Android 9.0*/Android 10.0 with GMS

Power Supply

12V/60W

Intel vPro Support

N/A

RAID Function

N/A

TPM Support

N/A
Display & Touch
LCD Display

21.5" TFT LCD

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel); Optional AG glass (cannot coexist with camera)
I/O & Expansion
Audio

Internal 3W speaker x 2 + Mic-in/Line-out

CR Port

1, control 2 x cash drawer, 24V support only

Display Port

HDMI x 1

Extension Slot

Mini-PCIe for WiFi x 1

LAN Port

10/100/1000 Mb x 1

OTG USB

Micro-USB x 1

Serial Port

DB9 x 2

Standard USB Port

4, USB 3.0 x 1 + USB 2.0 x 3
Built-in Option
Scanner

2D barcode scanner

AG Glass

Optional (cannot coexist with built-in camera)

Camera

Front facing, 1MP wide angle, auto focusing

WiFi

Mini-PCIe WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

547 x 61 x 377

Weight (N.W. in Kg)

6
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH
Attachment Options
Note

Google Play services is not supported by this device.

Brand

HC Series

E-Brochures
Brochure for HC 2021A Download
