HC 1621P

HC Series

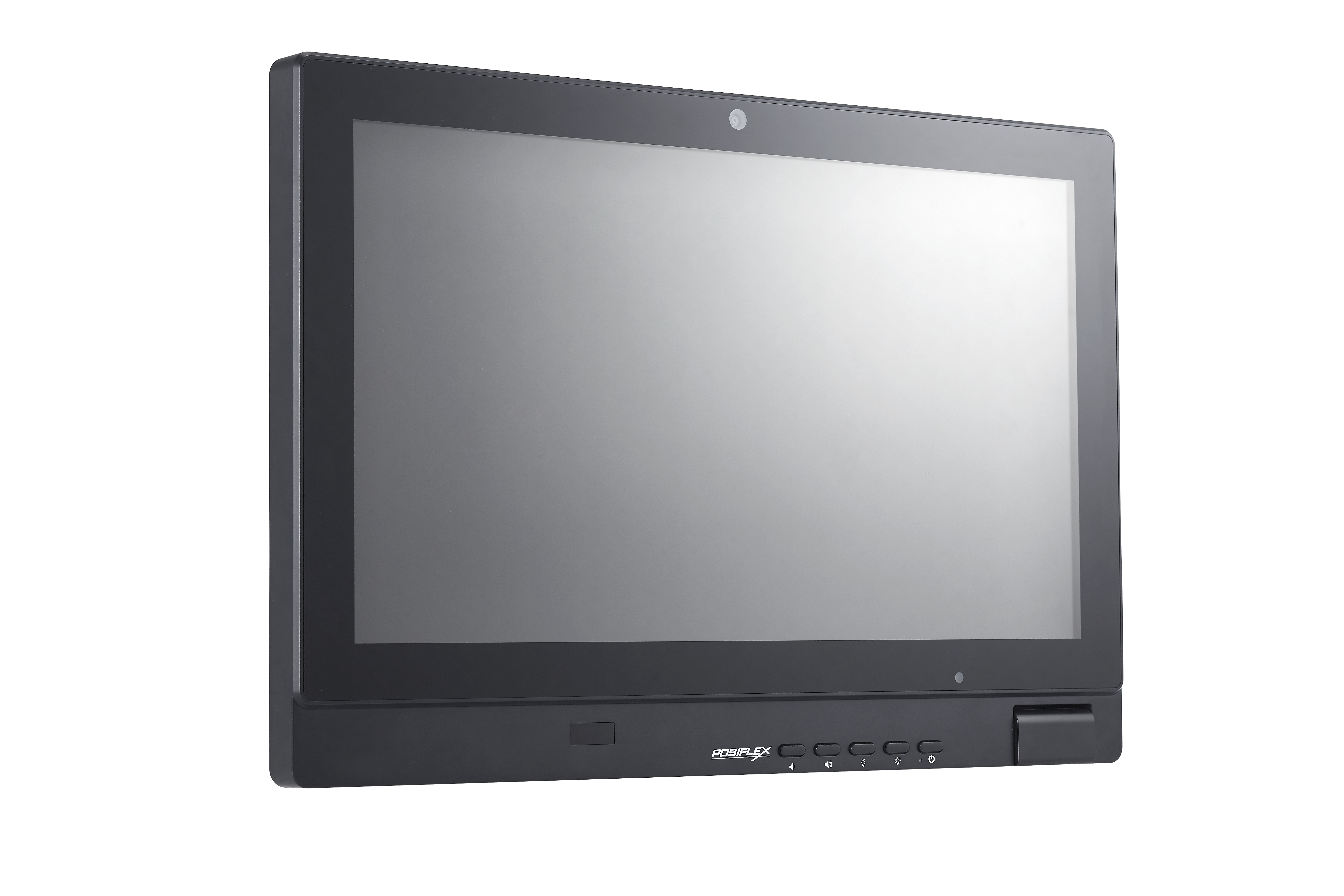

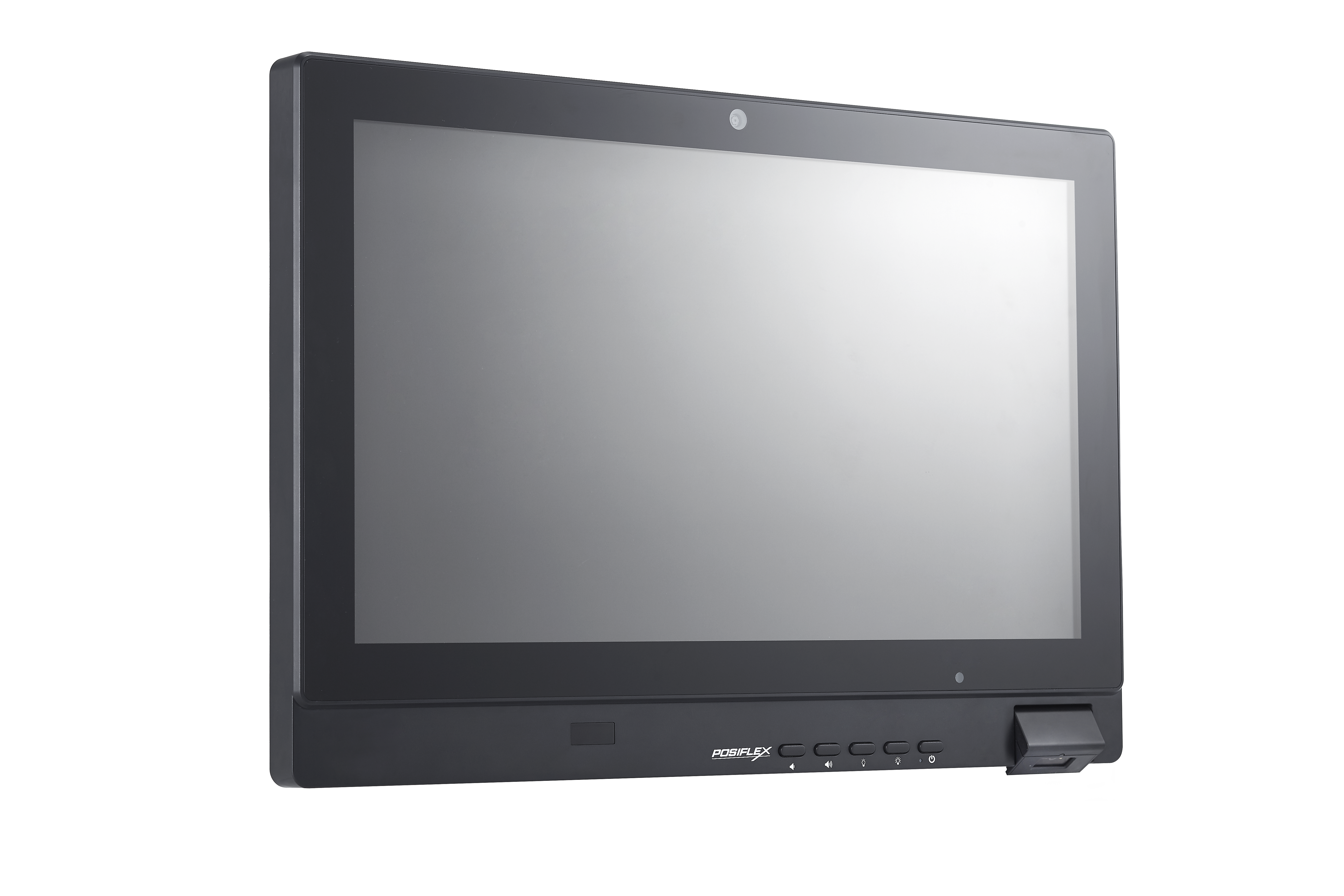

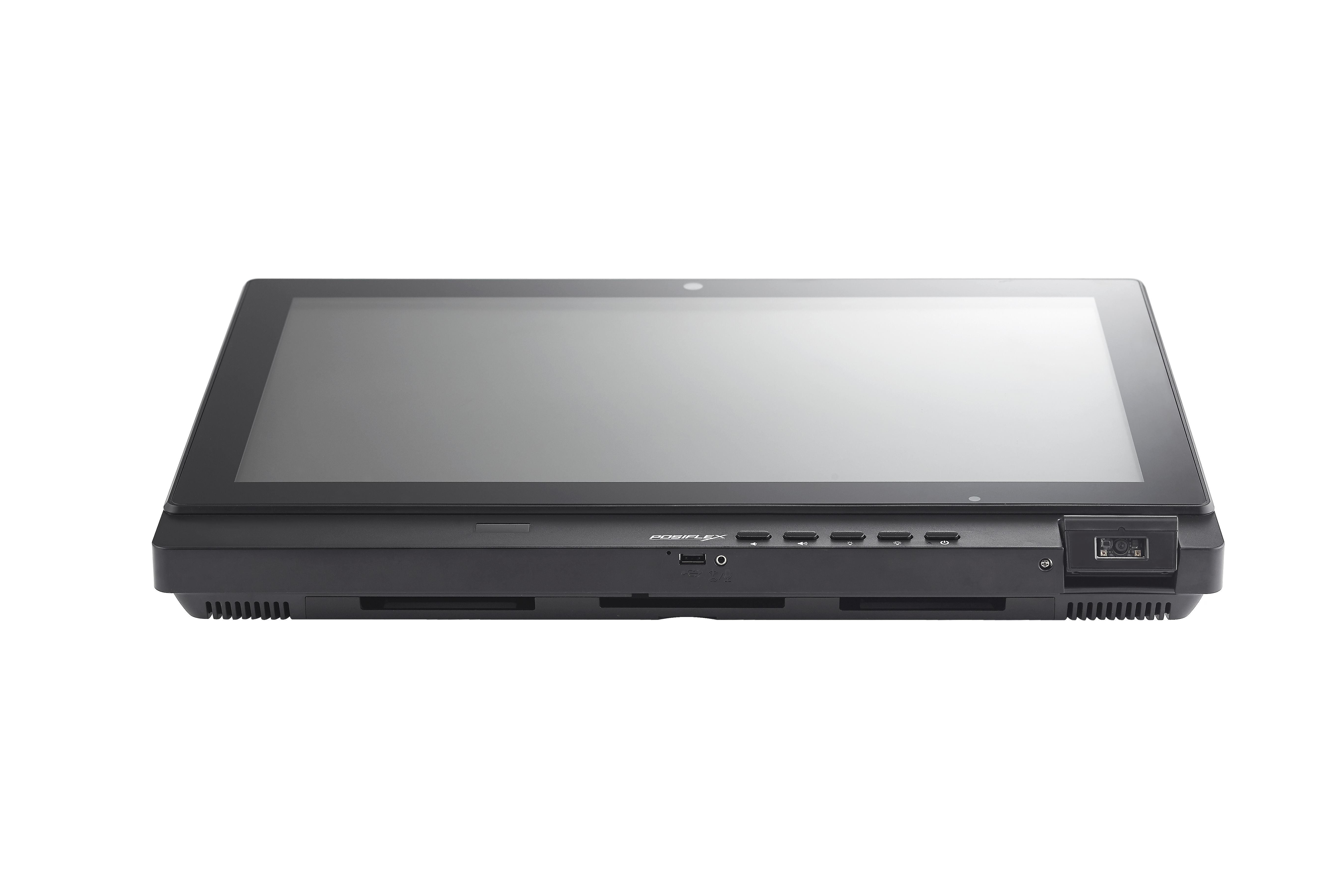

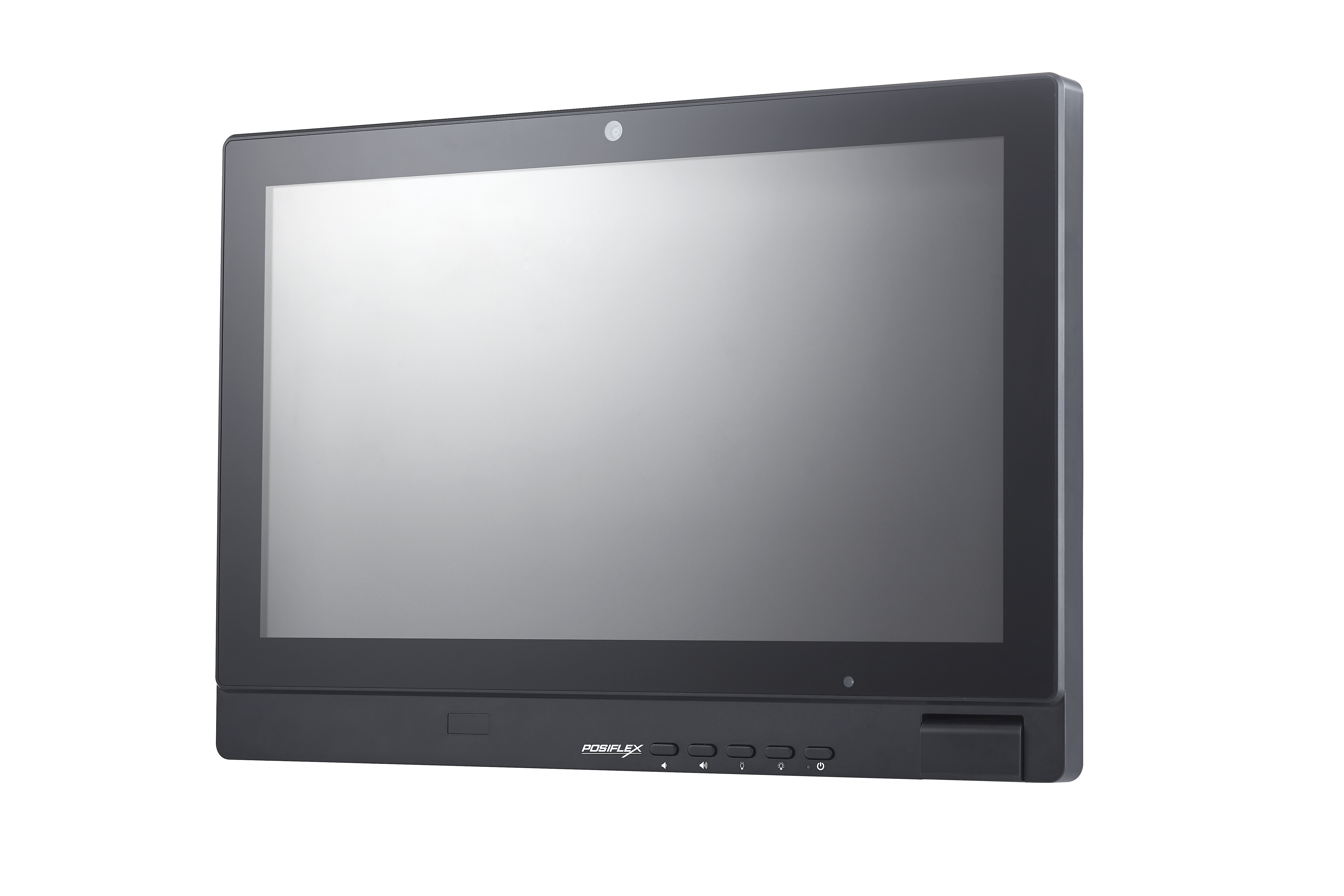

The HC-1621P is a high-end infotainment terminal with a 21.5 PCAP touch screen display. It offers real versatility for a variety of interactive solutions including self-service kiosks, kitchen display systems, and healthcare computing solutions.

Compare
Category:
HC Series

Additional information

System Configuration
Processor

Intel Kaby Lake Core i5-7500T, up to 3.30 GHz, 6M Cache

Storage Device

SATA connectorx 1 + M.2 connector [support AHCI] x 2

System Memory

DDR4 SO-DIMM x 2, max. 32GB in 2 slots

OS Support

Windows 10 IoT 64 bits

Power Supply

12V/84W

Intel vPro Support

YES

RAID Function

YES

TPM Support

YES
Display & Touch
LCD Display

21.5” TFT LCD

Touch Function

True-flat PCAP touch with multi-touch support (IP65 on front panel); Optional AG glass (cannot coexist with camera)
I/O & Expansion
Audio

Internal 3W speaker x 2 + Mic-in/Line-out

CR Port

N/A

Display Port

VGA x 1 + HDMI x 1, 12V support on VGA port for Posiflex monitors

Extension Slot

M.2 slot x 1

LAN Port

10/100/1000 Mb x 2

OTG USB

N/A

Serial Port

4, DB9 x 4, 5V/12V support on all COM ports

Standard USB Port

7, USB 3.0 x 4 + USB 2.0 x 3
Built-in Option
Scanner

2D barcode scanner

AG Glass

Optional (cannot coexist with built-in camera)

Camera

Front facing, 1MP wide angle, auto focusing

WiFi

M.2 WiFi/BT module
Physical Characteristics
Dimension (W x D x H in mm)

547 x 61 x 377

Weight (N.W. in Kg)

6.6
Environment
Operating Condition

0°C – 50°C, 20%RH – 90%RH

Storage Condition

-20°C – 70°C, 10%RH – 90%RH

Brand

HC Series

E-Brochures
Brochure for HC 1621P Download
