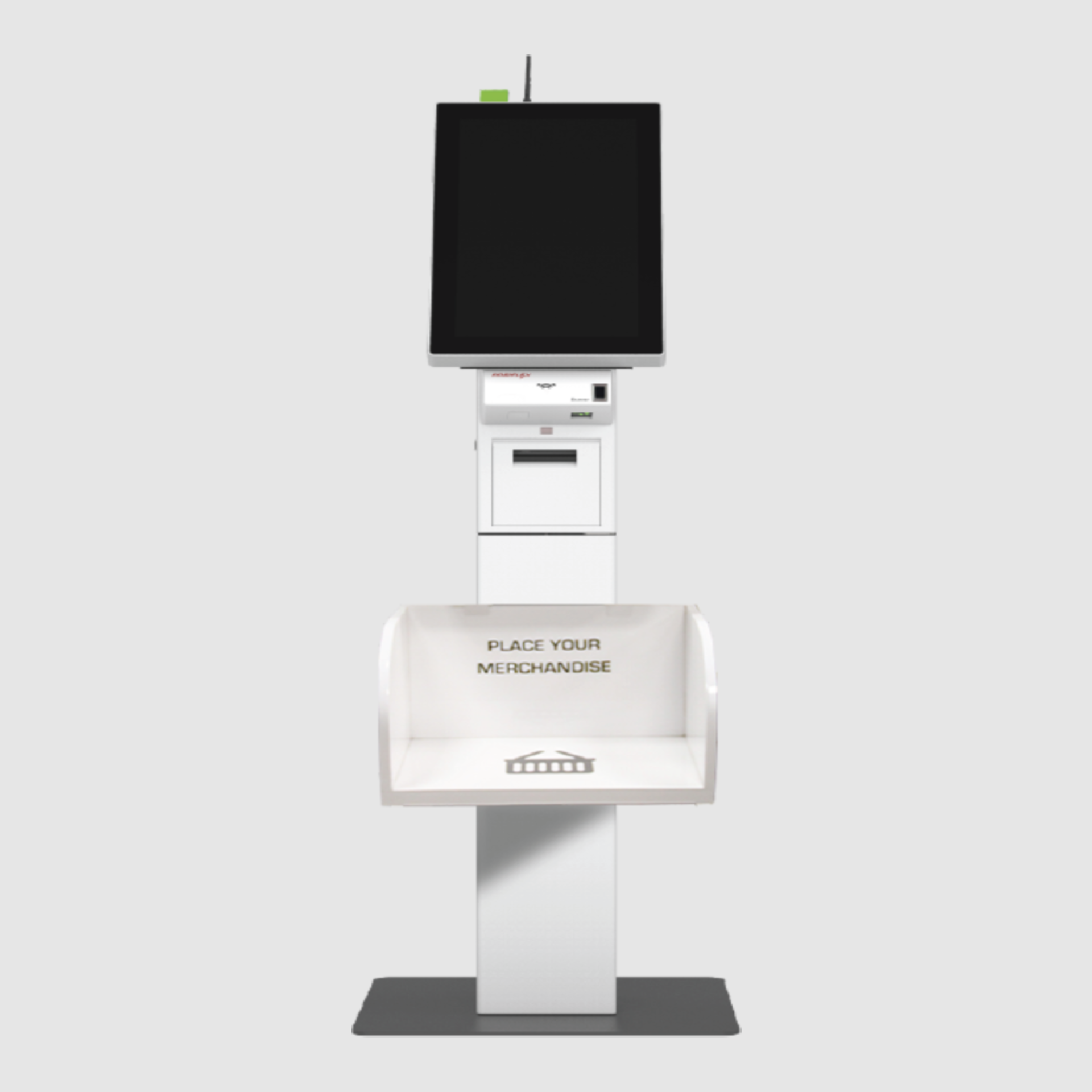

EK 2110

System-Configuration

EK-2110

Processor

Rockchip RK3399, Dual-core Cortex A72 up to 1.8GHz + Quad-core Cortex A53 up to 1.4GHz

System Memory

DDR4 4 GB

Storage Device

32 GB eMMC + microSD slot x 1

Intel vPro Support

N/A

TPM Support

N/A

Power Supply

12V/60W x 1 + 24V/60W x 1

OS Support

Android 9.0*/Android 10.0 with GMS

I/O-Expansion

Serial Port

RJ50 x 2, 5V/12V support on all COM ports

Standard USB Port

USB 3.0 x 1 + USB 2.0 x 5

OTG USB

Micro-USB x 1

Display Port

HDMI x 1

LAN Port

10/100 Mb x 1
10/100/1000 Mb x 1

Audio

Internal 3W speaker x 2

Expansion Slot

N/A

Display & Touch

LCD

21.5"

Resolution

1920 x 1080

Touch

True-flat PCAP touch with multi-touch support

Dimension

Dimension(W x D x H in mm)

Countertop version (Portrait): 395 x 395 x 774
Floorstanding version (Portrait): 500 x 500 x 1546
Countertop version (Landscape): 540 x 395 x 588
Floorstanding version (Landscape): 540 x 500 x 1362

Weight(N. W. in kg)

Countertop version: 22.6
Floorstanding version: 34.8

Environmental

Operating Condition

0°C - 40°C, 20%RH - 90%RH

Storage Condition

-20°C - 70°C, 10%RH - 90%RH

Standard Components

Status Indicator

N/A

Proximity Sensor

1. Range from 45cm ~ 80cm (for dark color object)
2. Range from 45cm ~ 150cm (for light color object)

Camera Module

1MP wide angle camera

Printer Module

3" thermal printer w/auto cutter, 200 mm/sec (max.)

Optional-Components

Status Indicator (Optional)

RGB Color LED Indicator (for portrait mode only)

Scanner Module

2D barcode scanner

EMV Payment Device Bracket Support

Custom bracket support for various EMV payment devices
(Posiflex does not sell the EMV payment devices, but can provide bracket support with an additional charge)

MSR

N/A

Fingerprint Sensor

Optical type

NFC/RFID Reader

Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica), ISO/IEC 15693, NFC protocols - tag read/write (ISO/IEC-18092)

4G / LTE Communication

Support selected bands & countries with full SIM slot (mini-PCIe module) by request

PowerGuard

N/A

Payment Handling for Pedestal PT-200BC

N/A

Payment Handling for Pedestal PT-300

N/A

Payment Handling for Pedestal PT-500

N/A

WiFi

USB dongle (cannot coexist with 4G/LTE)

Note

Google Play services is not supported by this device.
